Anywhere, anytime

Passenger Vehicles Electrification Solutions

CORNEX focuses on providing safe, reliable and cost-effective battery solutions for new energy passenger vehicles, with product series covering the entire range of models from MiniEV to C+ class, helping passenger vehicle companies to upgrade their electrification.

High Security, High Convenience

Cell material and structural safety optimization
No fire, no smoke
Based on GB38031 comprehensive test verification Anti-thermal runaway propagation system

Long Service Life, Low Cost

Warranty for 6 years or 600,000 km

Long Battery Life, High Availability

PED 190Wh/kg high-energy dense lithium iron technologies Endurance covering 200~1000+km

Market Applications

EV (to C) EV (to B) PHEV/HEV
Battery Cell
PF300-163A
PF300-173A
PF220-127A
PF148-120A
Basic parameters

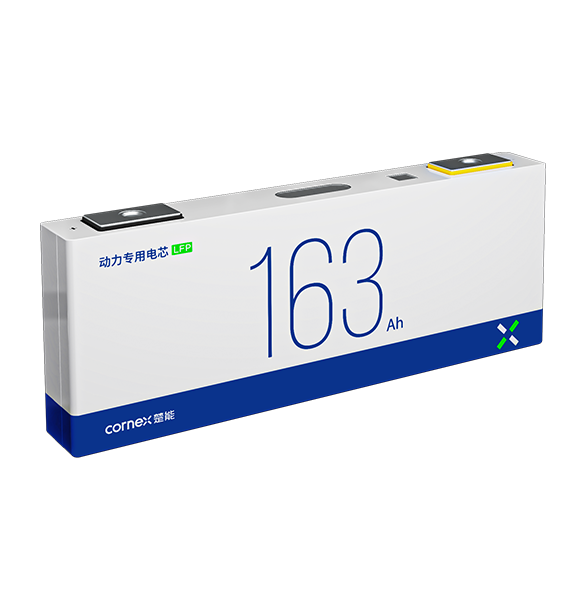

Product SpecificationsPF300-163A
Rated Capacity (Ah) @1/3C163Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)39.7*300.3*113.6mm
Weight (kg)2.97kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS
Basic parameters

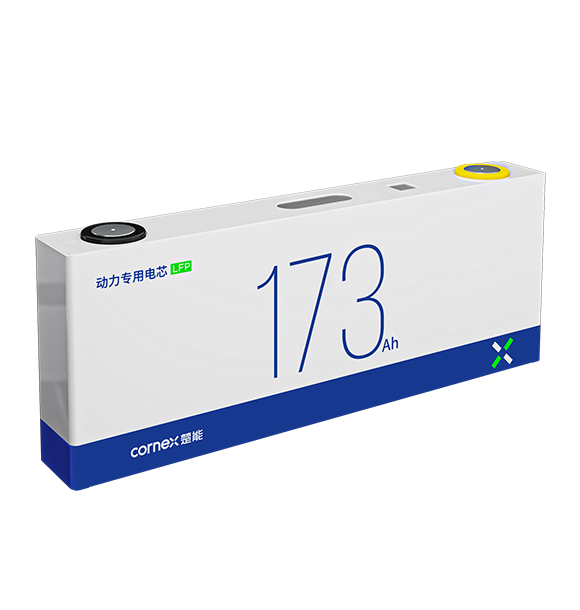

Product SpecificationsPF300-173A
Rated Capacity (Ah) @1/3C173Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)40.4*300*115.2mm
Weight (kg)3.07kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS
Basic parameters

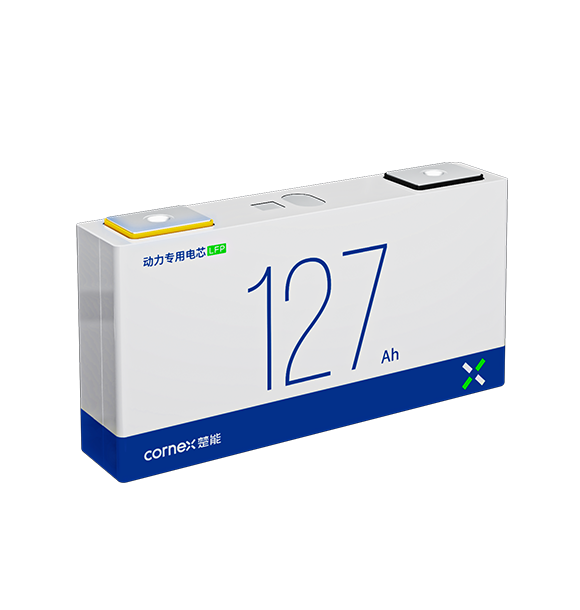

Product SpecificationsPF220-127A
Rated Capacity (Ah) @1/3C127Ah
Charge/Discharge Rate (C)7.5C/7.5C
Cycle Life≥2000
Dimensions (W*L*H mm)44.5*220.3*112.9mm
Weight (kg)2.4kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS
Basic parameters
Product SpecificationsPF148-120A
Rated Capacity (Ah) @1/3C120Ah
Charge/Discharge Rate (C)3C/5C
Cycle Life≥3500
Dimensions (W*L*H mm)52.3*148.6*119.1mm
Weight (kg)2.08kg
Testing and Certification GB38031、GB/T31484、GB/T31486、RoHS

CTP 3.0 Super-fast Charge Power Battery System

The CTP 3.0 super-fast charge power battery system developed by CORNEX is provided with a 10C+800V super-power system through the matrix arrangement of high-performance power cells. The battery can be charged to 10%-80% power within 7 min.
The original single-large-area liquid cooling system, combined with wide, thin and high-performance power battery cells, can avoid low volume utilization rate of double-large-area cooling system and low efficiency of bottom cooling system. The related performance indicators are superior to the industrial criterion.

Ultra-high thermal conversion efficiency

Heat transfer efficiency increased by 20%
Temperature fluctuation controlled within 4°C
Stable operation in the range of -40°C to 60°C

Satisfactory temperature control/excellent safety performance

High-temperature-resistant and flame-retardant material
Large surface of the cell close to the liquid-cooled plate
No thermal diffusion under conditions such as puncturing, heating and overcharge

Super-fast charge

Maximum continuous charge and discharge 10C/10C
Charging speed 100km/min

High volume utilization rate

Wire harness and aluminum busbar reduced by more than 30%
Volume utilization rate of more than 80%
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
