Passenger Vehicles Electrification Solutions

CORNEX focuses on providing safe, reliable and cost-effective battery solutions for new energy passenger vehicles, with product series covering the entire range of models from MiniEV to C+ class, helping passenger vehicle companies to upgrade their electrification.

High Security, High Convenience

Cell material and structural safety optimization
No fire, no smoke
Based on GB38031 comprehensive test verification Anti-thermal runaway propagation system

Long Service Life, Low Cost

Warranty for 6 years or 600,000 km

Long Battery Life, High Availability

PED 190Wh/kg high-energy dense lithium iron technologies Endurance covering 200~1000+km

Market Applications

EV (to C) EV (to B) PHEV/HEV
Battery Cell
PF300-130A
PF300-134A
PF300-163A
PF300-173A
PF300-208A
PF194-130A
PF194-132A
PF194-159A
PF300-135A
PF300-166A
PN300-105A（NA+）
PF148-89A
PF148-104A
Basic parameters
Product SpecificationsPF300-130A
Rated Capacity (Ah) @1/3C130Ah
Charge/Discharge Rate (C)5C/5C
Cycle Life≥2500
Dimensions (W*L*H mm)33.2*300.3*113.5mm
Weight (kg)2.47kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF300-134A
Rated Capacity (Ah) @1/3C134Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)33.2*300.3*113.5mm
Weight (kg)2.47kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF300-163A
Rated Capacity (Ah) @1/3C163Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)39.7*300.3*113.6mm
Weight (kg)2.98kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF300-173A
Rated Capacity (Ah) @1/3C173Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)40.4*300*115.1mm
Weight (kg)3.1kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF300-208A
Rated Capacity (Ah) @1/3C208Ah
Charge/Discharge Rate (C)2.5C/3C
Cycle Life≥2500
Dimensions (W*L*H mm)50.8*300.3*113.5mm
Weight (kg)3.8kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF194-130A
Rated Capacity (Ah) @1/3C130Ah
Charge/Discharge Rate (C)5C/5C
Cycle Life≥2500
Dimensions (W*L*H mm)50.8*194.3*113.3mm
Weight (kg)2.44kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF194-132A
Rated Capacity (Ah) @1/3C132Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)50.8*194.3*113.1mm
Weight (kg)2.4kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF194-159A
Rated Capacity (Ah) @1/3C159Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥2500
Dimensions (W*L*H mm)60.8*194.3*113.1mm
Weight (kg)2.95kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF300-135A
Rated Capacity (Ah) @1/3C137Ah
Charge/Discharge Rate (C)1.8C/3C
Cycle Life≥2500
Dimensions (W*L*H mm)33.2*301*113.3mm
Weight (kg)2.49kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters

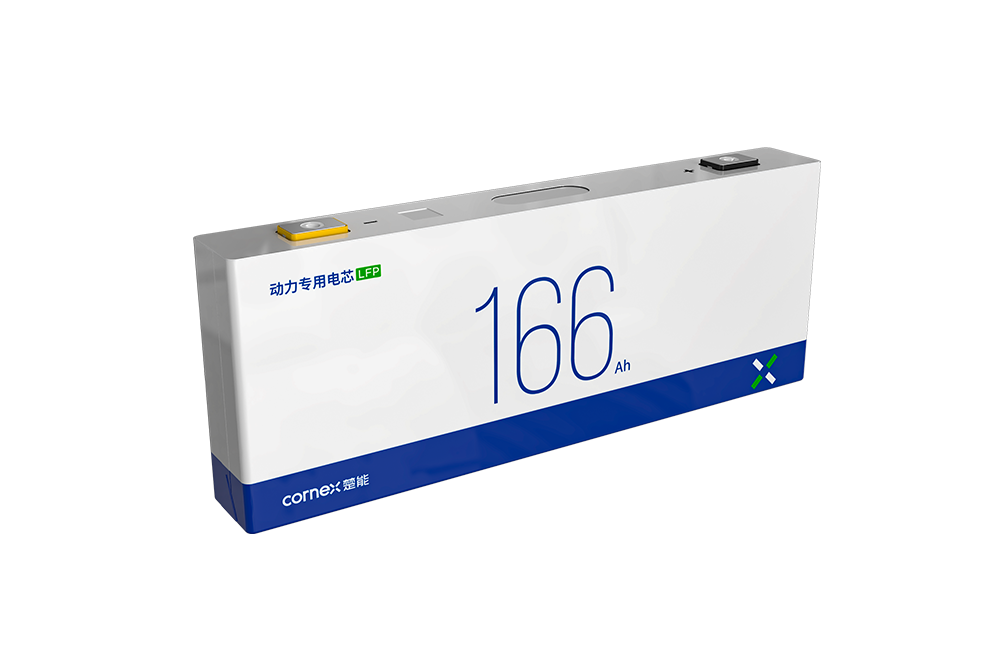

Product SpecificationsPF300-166A
Rated Capacity (Ah) @1/3C166Ah
Charge/Discharge Rate (C)1.8C/3C
Cycle Life≥2500
Dimensions (W*L*H mm)39.2*301*113.4mm
Weight (kg)2.94kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPN300-105A（NA+）
Rated Capacity (Ah) @1/3C105Ah
Charge/Discharge Rate (C)1.8C/3C
Cycle Life≥1500
Dimensions (W*L*H mm)39.2*300.3*113.6mm
Weight (kg)2.3kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF148-89A
Rated Capacity (Ah) @1C89Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥3500
Dimensions (W*L*H mm)52*148*104mm
Weight (kg)1.66kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
Basic parameters
Product SpecificationsPF148-104A
Rated Capacity (Ah) @1C104Ah
Charge/Discharge Rate (C)3C/4C
Cycle Life≥3500
Dimensions (W*L*H mm)52*148*117.4mm
Weight (kg)1.93kg
Testing and Certification GB38031、GBT31484、GBT31486、RoHS
* All information on this page might be updated or modified in the future. Therefore, the above information is provided for reference only and constitutes neither an offer nor a commitment.
